Okta Certified Professional — Lab: Real SAML Integration with IAMShowcase

These are my lab notes from the Okta Professional Certification hands-on track. The first SAML lab used fake example.com values — enough to practice the Okta-side setup. This one uses a real Service Provider so you can validate the full assertion flow end to end.

Maps to exam: Part II — Application Setup with OIN (30%) · See the full lab map on the Okta Professional Cert Study Map or the official study guide.

The SP is IAMShowcase — a free SAML test tool that receives assertions and displays their contents. No app to deploy, no backend to configure.

Objective

Okta app assignment → SAML assertion → real ACS URL → attribute visibility → app policy behavior

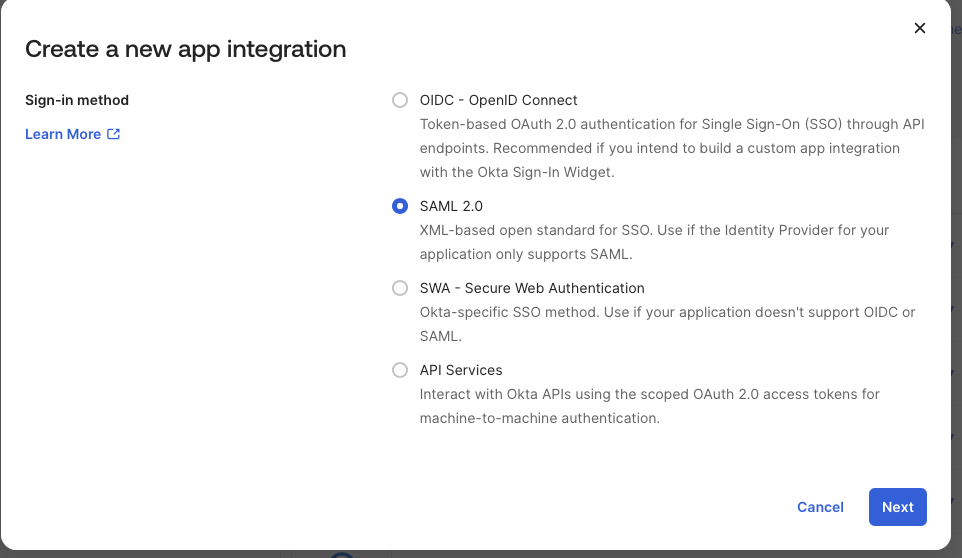

1. Create the SAML App

Applications → Applications → Create App Integration → SAML 2.0

App name: CERT Real SAML Test SP

2. Configure SAML Settings

IAMShowcase publishes SAML metadata. The values you need:

The metadata confirms both values:

entityID="IAMShowcase"
Location="https://sptest.iamshowcase.com/acs"

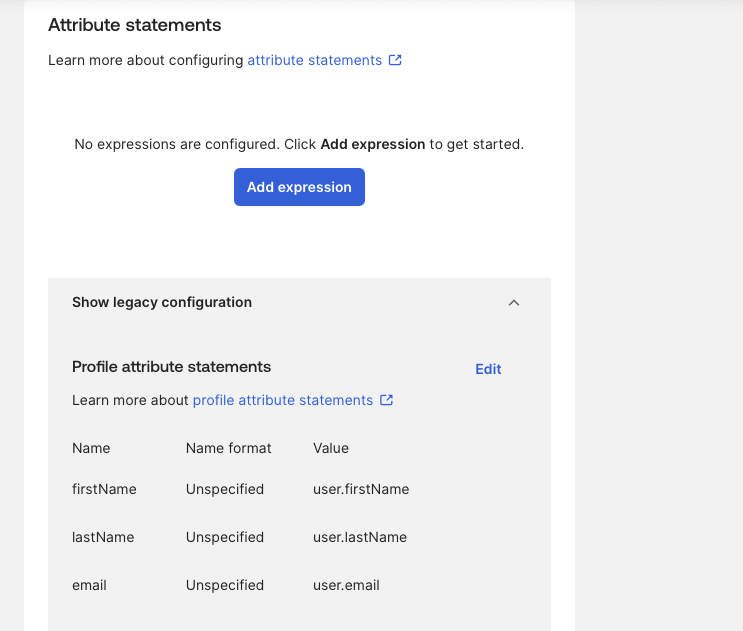

3. Attribute Statements

Add three attribute statements so IAMShowcase can display user details:

4. Signing Settings

IAMShowcase’s metadata includes:

WantAssertionsSigned="true"

Make sure Okta signs the assertion. In the Advanced Settings section, enable:

Response: Signed
Assertion Signature: Signed

Leave everything else at defaults unless the SP metadata specifies otherwise. The standard settings work for this SP:

5. Finish App Creation

When Okta asks for context, select:

I'm an Okta customer adding an internal app

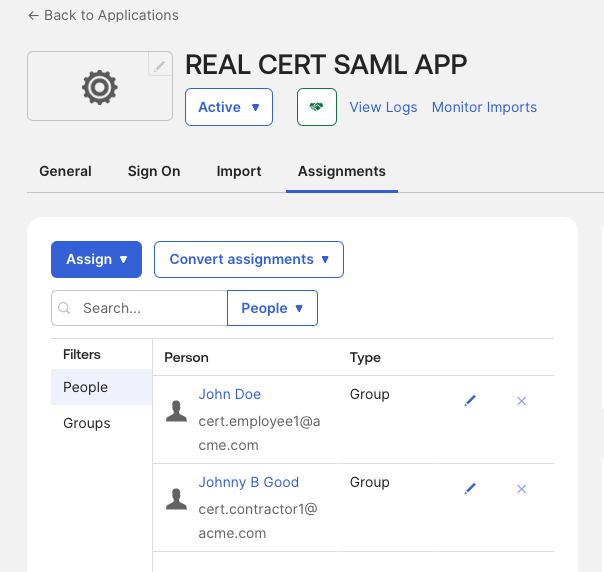

6. Assign the App

Applications → CERT Real SAML Test SP → Assignments

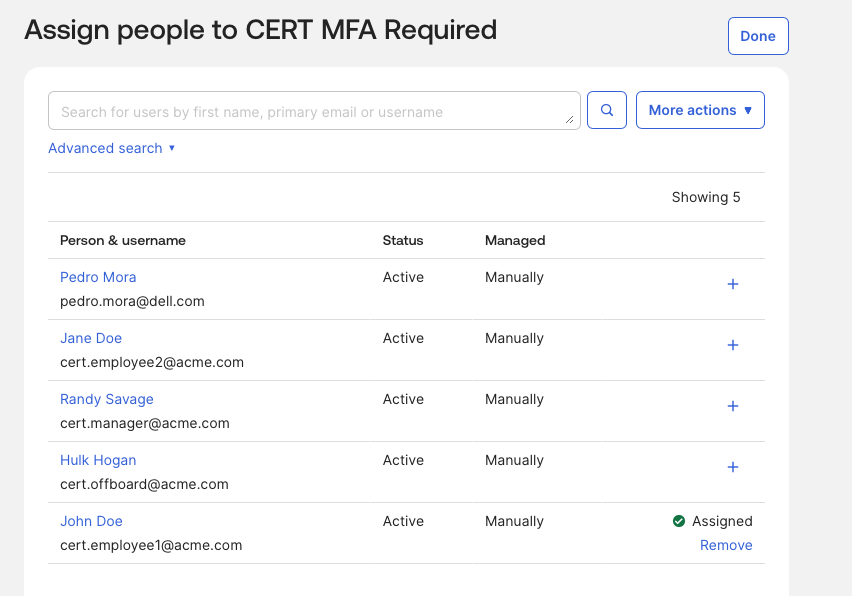

Assign the app to CERT MFA Required. Confirm cert.employee1 is included.

cert.employee2 should not have access — this gives you a control user for testing.

7. Test IdP-Initiated Flow

Open a private browser. Sign in as cert.employee1.

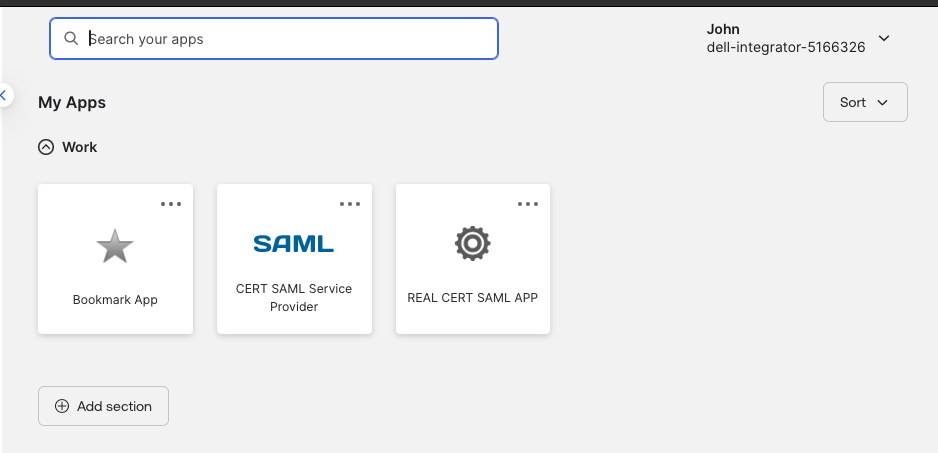

On the Okta dashboard, click the CERT Real SAML Test SP tile.

Expected flow:

Okta authenticates user
→ Okta builds SAML assertion
→ Browser POSTs assertion to https://sptest.iamshowcase.com/acs
→ IAMShowcase displays assertion contents

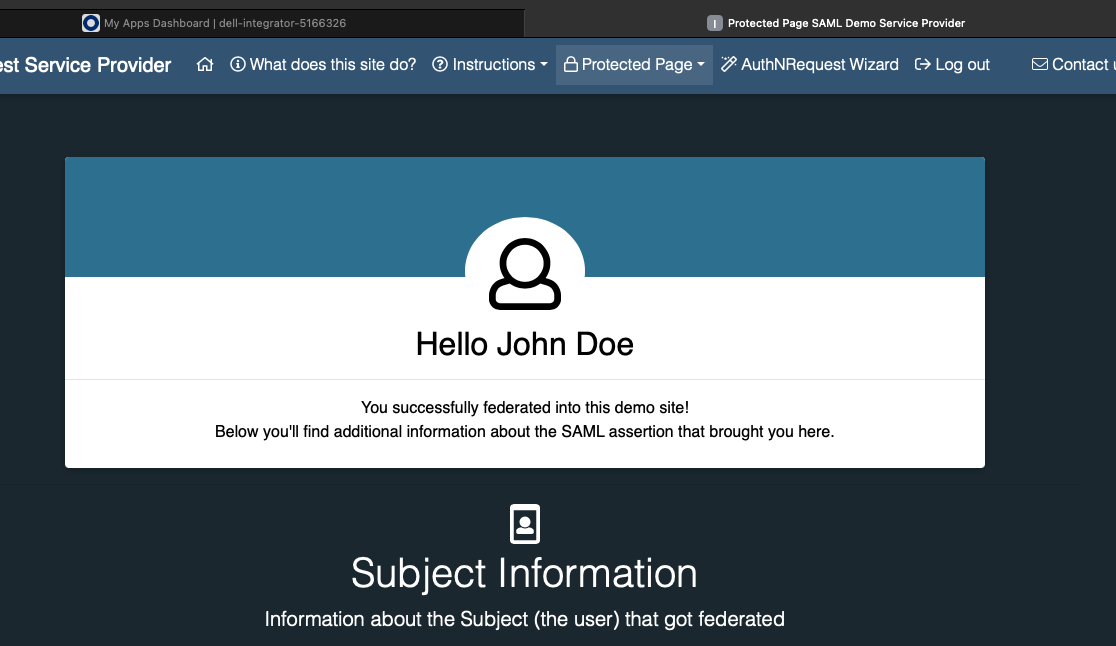

If everything is wired correctly, IAMShowcase shows you the NameID and the attribute statements you configured.

8. Test Assignment Control

Sign out. Sign in as cert.employee2.

Expected: the CERT Real SAML Test SP tile does not appear. If it does, check the app’s assignment scope.

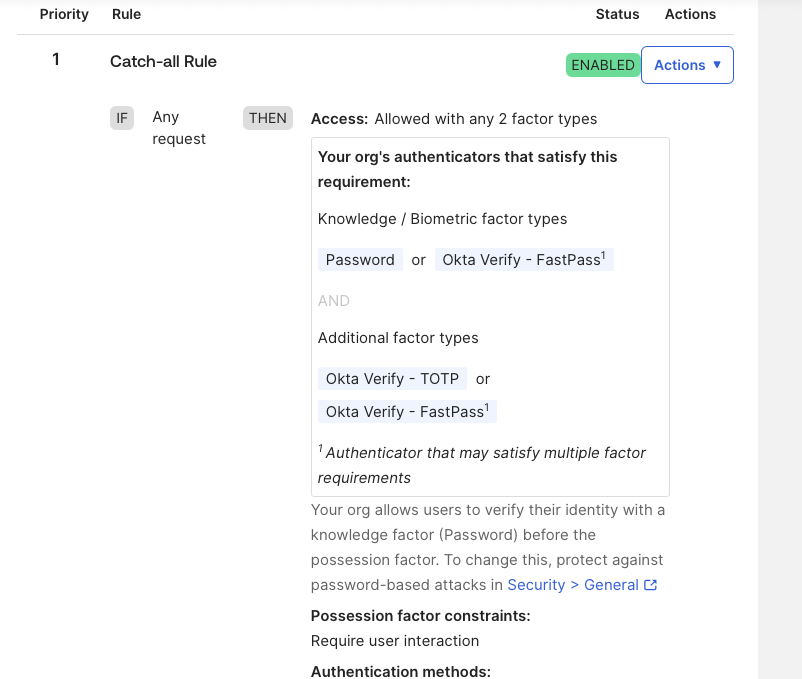

9. Attach an App Authentication Policy

Security → Authentication Policies → Create Rule

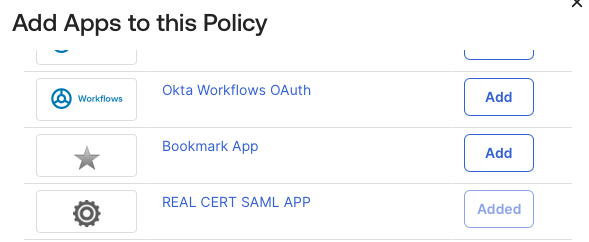

Attach the policy to the app:

Applications → CERT Real SAML Test SP → Sign On

10. Test App Policy

Open a clean private browser. Sign in as cert.employee1, then click the app tile.

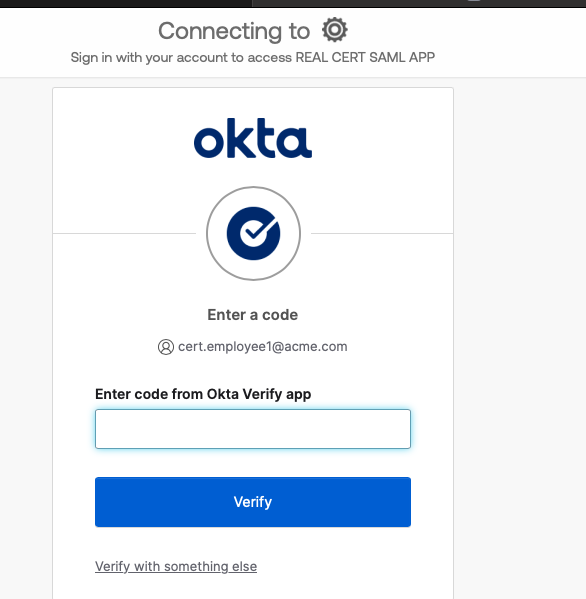

Expected: Okta requires additional verification before releasing the SAML assertion.

If it goes straight through without a challenge, work through this checklist:

11. System Log Evidence

Reports → System Log → search cert.employee1

Look for these event types in sequence:

Success Criteria

You’re done when you can demonstrate:

1. cert.employee1 sees the app tile and launches it successfully.
2. cert.employee2 does not see the tile.
3. IAMShowcase receives the assertion and displays NameID + custom attributes.
4. The App Authentication Policy forces additional verification before assertion delivery.
5. System Log shows the full event chain: session → policy eval → MFA → app access.
